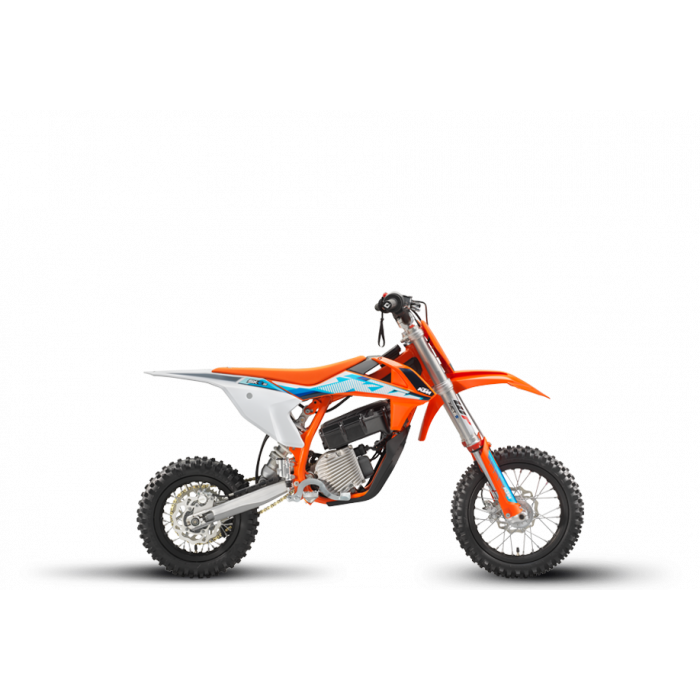

KTM SX-E 5 - 2024

Contact for Availability
SKU
KTM SX-E 5 - 2024
£5,699.00

To enquire about this item please telephone +44 (0)28 9262 2886 or email sales@phillipmccallen.com

New & Used Bikes

Delivery

We can arrange deliver of any new or used motorcycle to any location in the UK or Ireland. Contact our Sales Team for pricing.

Test Rides

Contact our friendly, helpful Sales Team to arrange a test ride on one of our fleet of demonstrators or any of our approved used motorcycles.

Safety

All our used motorcycles go through a rigorous multi-point health check prior to sale.

The KTM SX-E 5 is an all-electric mini-crosser aimed at both beginner and competitive junior riders. With zero emissions and minimal sound pollution, it takes its place at the leading edge of competitive mini-cross, and provides a real-world READY TO RACE alternative to the petrol-powered 50 cc engine. Featuring high-quality components that make it significantly different from the many electric mini-cycles available on the market, the KTM SX-E 5 is a fully-fledged competition motorcycle, making it more accessible to younger riders for use in areas where noise emissions are restricted.





TECHNICAL DETAILS



ENGINE

  • RATED OUTPUT2 kW / 3,200 rpm
  • TORQUE13.8 Nm
  • TRACTION BATTERYLithium-Ion KTM PowerPack
  • BATTERY CAPACITY21 Ah
  • CHARGER LINE VOLTAGE80-240 V/50-60 Hz
  • CHARGING INPUTQuick charging 5 A @ 230 V (AC)
  • CHARGING POWER900 W
  • CHARGING TIME 100 %70 min.
  • CHARGING TIME 80 %45 min.
  • COOLINGAir cooled
  • ENERGY CONTENT0.907 kWh
  • ELECTRIC MOTOR48 V - BLDC motor with outer rotor
  • 6000 rpm
  • MAX. POWER5 kW / 3,900 rpm



CHASSIS

  • FRONT BRAKE DISC DIAMETER160 mm
  • REAR BRAKE DISC DIAMETER160 mm
  • FRONT BRAKEDisc brake
  • REAR BRAKEDisc brake
  • CHAIN1/2 x 3/16"
  • FRAME DESIGNCentral-tube frame with double-cradle
  • FRONT SUSPENSIONXACT 35 WP Upside-Down fork, Ø 35 mm
  • GROUND CLEARANCE252 mm
  • REAR SUSPENSIONWP Xplor PDS shock absorber
  • SEAT HEIGHT665 mm
  • STEERING HEAD ANGLE66 °
  • SUSPENSION TRAVEL (FRONT)205 mm
  • SUSPENSION TRAVEL (REAR)185 mm
