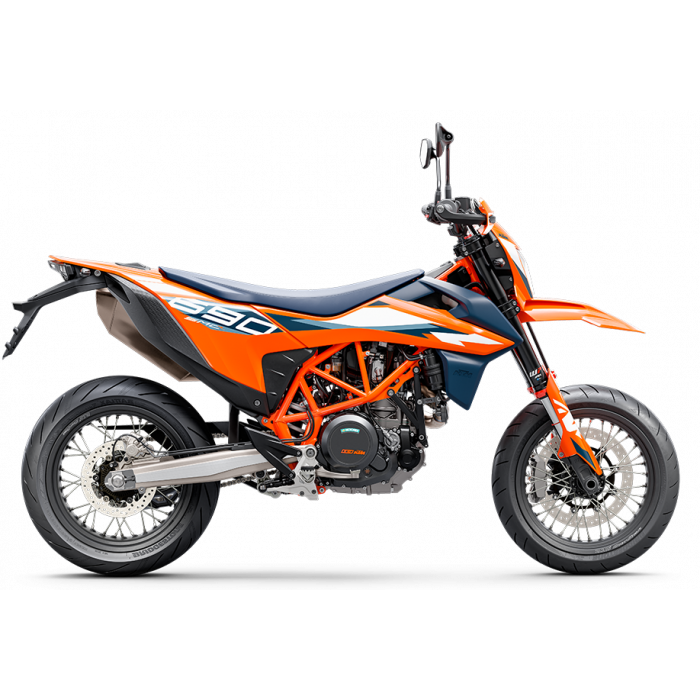

KTM 690 SMC R - 2024

Contact for Availability
SKU
KTM 690 SMC R - 2024
Now £9,399.00 Was £10,399.00

To enquire about this item please telephone +44 (0)28 9262 2886 or email sales@phillipmccallen.com

New & Used Bikes

Delivery

We can arrange deliver of any new or used motorcycle to any location in the UK or Ireland. Contact our Sales Team for pricing.

Test Rides

Contact our friendly, helpful Sales Team to arrange a test ride on one of our fleet of demonstrators or any of our approved used motorcycles.

Safety

All our used motorcycles go through a rigorous multi-point health check prior to sale.

The KTM 690 SMC R raises the bar in the supermotos stakes, thanks in part to a lightweight chassis, a legendary 690 LC4 motor and a sophisticated electronics package. Whether you express your tarmac-sliding talent on mountain roads or on the apexes of your favourite track, you'll be drifting into the future with a maxed-out grin and your veins coursing with adrenaline. Handling is enhanced by the latest fully-adjustable WP APEX suspension, so all you have to worry about is focusing on the road ahead and twisting the throttle to the stoppers.



ENGINE

  • TORQUE 73.5 Nm
  • TRANSMISSION 6-speed
  • COOLING Liquid cooled
  • POWER IN KW 55 kW
  • STARTER Electric starter
  • STROKE 80 mm
  • BORE 105 mm
  • CLUTCH PASC (TM) slipper clutch, hydraulically actuated
  • CO2 EMISSIONS 96 g/km
  • DISPLACEMENT 692.7 cm³
  • EMS Keihin EMS with RBW, twin ignition
  • DESIGN 1-cylinder, 4-stroke engine
  • FUEL CONSUMPTION 4.1 l/100 km
  • LUBRICATION Forced oil lubrication with 2 oil pumps



CHASSIS

  • TANK CAPACITY (APPROX.) 13.5 l
  • ABS Bosch 9.1 MP (incl. Cornering-ABS and super moto mode)
  • FRONT BRAKE DISC DIAMETER 320 mm
  • REAR BRAKE DISC DIAMETER 240 mm
  • FRONT BRAKE Brembo four-piston radial fixed calliper, brake disc
  • REAR BRAKE Brembo single-piston floating calliper, brake disc
  • CHAIN 520 X-Ring
  • FRAME DESIGN Chrome-moly tubular space frame, powder-coated
  • FRONT SUSPENSION WP APEX 48
  • GROUND CLEARANCE 237 mm
  • REAR SUSPENSION WP APEX with Pro-Lever linkage
  • SEAT HEIGHT 892 mm
  • STEERING HEAD ANGLE 63.6 °
  • SUSPENSION TRAVEL (FRONT) 215 mm
  • SUSPENSION TRAVEL (REAR) 240 mm
